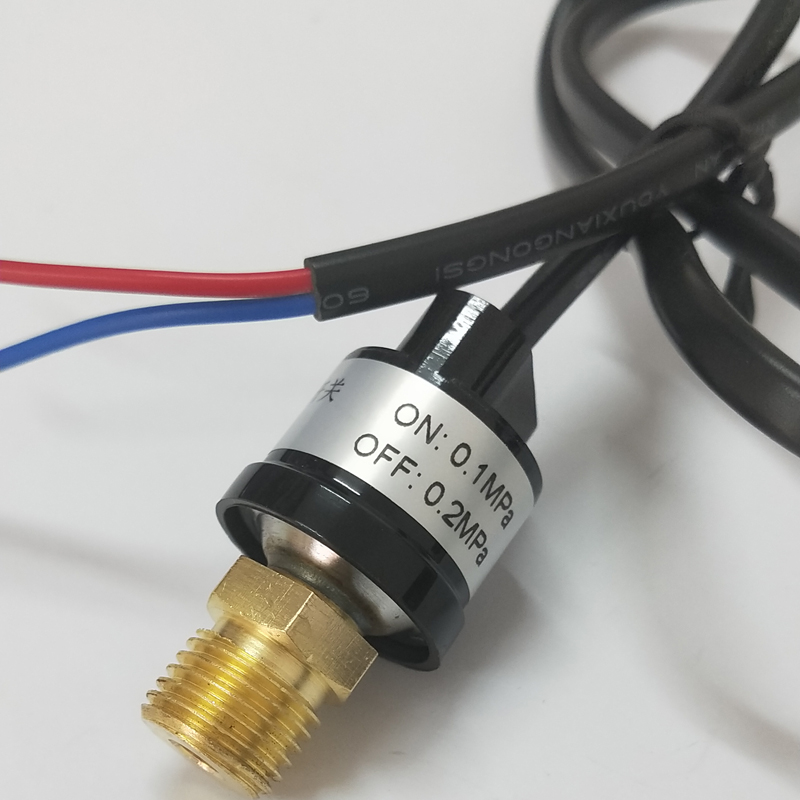

Universal Pressure Switch
| Produce name | Hvac high/low on off pressure switch for air conditioner compressor and heat pump |
| Applicable medium | Liquid, gas, water, oil, steam |
| Pressure setting range | The pressure setting is according to customer requirements, both positive and negative pressure can be achieved |
| Switch form | Normally open, normally closed |
| Working type | Manual reset, automatic reset optional |
| Medium temperature | High temperature resistant products can be customized |
| Working voltage, current | 120/240VAC, 3A5~28VDC, 6A |
| Dimensions | Please contact us for drawings |
| Life time | 100,000 times --500000 times optional |
| Thread size | 1/8NPT, G1/8", 1/4NPT, G1/4", 7/16-20UNF |
| Protection level | IP65 |
This is a universal pressure switch, the appearance can be designed according to the specific requirements of customers, and it has a wide range of applications.Such as air-conditioning, refrigeration equipments, air suspension systems, water treatment, air compressors, mechanical hydraulic and oil pressure control systems, agricultural machinery, construction machinery, CNC machine tools and machining center lubrication systems, safety devices, vacuum generators, vacuum tanks , Electric vehicle brake booster system, etc.
All pressure parameters of our company's products are customized according to customer requirements, in order to better match the equipment,If you don't know what kind of start-stop pressure your equipment needs, please contact us, we have professional engineers to choose the appropriate parameters for you.
What is normally open
Normally open. When the device is not energized, the contacts on it are in an open state, and only after the device is energized can it become a closed state. This kind of contact is called "normally open contact", or "normally open" for short.
What is normally closed
Normally closed, when the device is not energized, the contacts on it are in a closed state, and only after the device is energized can it become an open state. This kind of contact is called "normally closed contact", or "normally closed" for short.
Through the instability jump and recovery action of the butterfly-shaped metal diaphragm, the on and off states of the circuit is realized, so as to control the start-stop state of the equipment.The pressure setting is fixed and cannot be adjusted after leaving the factory. There are usually two states of normally closed or normally open.The working principle of a normally closed switch is that the switch is normally in the closed state, that is, Power-on state ,When the pressure of the equipment rises to the set pressure, in order to protect the safety of the equipment, the pressure switch will be switched to the power-off state. At the same time, the equipment will stop pressurizing.At this time, the equipment pressure begins to drop. When it drops to the set starting pressure value, the pressure switch will switch to the energized state, and the equipment will restart to work.Repeating this way ensures that the equipment will not be damaged due to too high pressure, and will not affect production due to too low pressure.The pressure in the equipment is perfectly in a suitable range.
This switch is a large shell switch, with a ziplock bag package and a separate plastic package.The ziplock bag packaging means that some switches are packaged in a ziplock bag at the same time. The plastic packaging shell packaging diagram is as follows:
