Good Quality Ac Pressure Switch - wring sealed pressure switch used for air train horn – Anxin Detail:

Product name: Wring sealed pressure switch used for air tank / horn / suspension rated85/105/110/145/165/200/90/120 PSI

Protection level: IP65

Pressure range:-100kpa~10Mpa

Control form: normally open, normally closed

Electrical connection: wire type and insert type, this switch is wire type, it can also be made into insert type

Interface type: Threaded connection or pagoda head interface. The interface thread can be set according to the user’s installation requirements

Working voltage: 6-36VDC, 110-250VDC, high voltage resistance, high current products can be customized according to customer requirements

Working temperature: Ambient temperature: -30℃-80℃. Medium temperature: -35℃-120℃

2-air pressure switch 90-120-150-180-200
sealed air horn pressure switch 150-180psi
微信图片_20210930134855
5-sealed airbag pressure switch

The mechanical pressure switch is a micro switch action caused by pure mechanical deformation.When the pressure increases, the different sensing pressure components (diaphragm, bellows, piston) will deform and move upward. The upper micro switch is activated by a mechanical structure such as a railing spring to output an electrical signal. This is the principle of the pressure switch.

Pressure switches mainly include normally open type and normally closed type.The main features are: the use of threaded quick connectors or copper pipe welding installation structure, flexible installation, easy to use, no need for special installation and fixation.The plug-in wire connector can be selected by the user at will.Within the pressure range, it is manufactured according to the pressure required by the customer.

It is widely used in various industrial automation environments,  such as air ride compressor ,air bag,air tank ,air lift ,train horn,refrigeration systems, lubrication pump systems, air compressor etc.

S.P.D.T (Single Pole Double Throw): Consists of a normally open, a normally closed contact and a common terminal.

D.P.D.T (Double Pole Double Throw): It consists of a symmetrical left and right common terminal and two sets of normally open and normally closed terminals.

Upper limit-contact (normally open): When the pressure rises to the set value, the contact will act and the circuit will be turned on.

Lower limit-contact (normally closed): When the Yali drops to the set value, the contact will act and the circuit will be turned on.

Upper and lower limit two contact HL: It is a combination of upper limit and lower limit, divided into two types of independent action of two contacts (dual setting, double circuit) and simultaneous action of two contacts (single setting, double circuit).

Upper limit 2 contact: Combining two upper limit forms, divided into two types of independent action of two contacts (dual setting, double circuit) and simultaneous action of two contacts (single setting, double circuit).

Lower limit 2 contacts: Combining two lower limit forms, divided into two types of independent action of two contacts (dual setting, double circuit) and simultaneous action of two contacts (single setting, double circuit)


微信图片_20210628160145


5-27-12


5-27-15

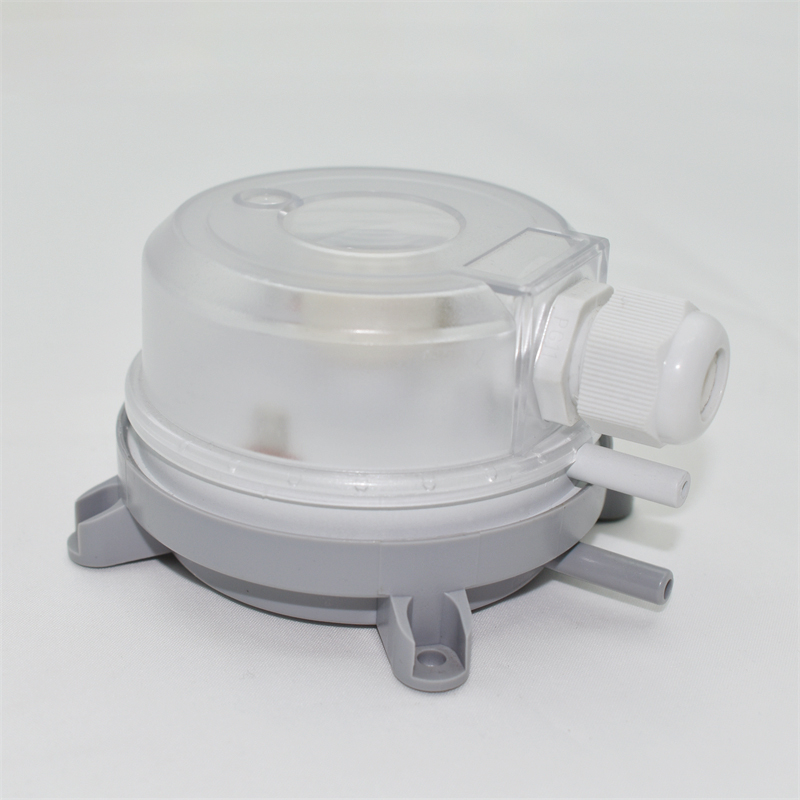

DSC_0127


5-27-13


5-27-6


Product detail pictures:

Good Quality Ac Pressure Switch - wring sealed pressure switch used for air train horn – Anxin detail pictures

Good Quality Ac Pressure Switch - wring sealed pressure switch used for air train horn – Anxin detail pictures

Good Quality Ac Pressure Switch - wring sealed pressure switch used for air train horn – Anxin detail pictures

Good Quality Ac Pressure Switch - wring sealed pressure switch used for air train horn – Anxin detail pictures

Good Quality Ac Pressure Switch - wring sealed pressure switch used for air train horn – Anxin detail pictures
