China Factory 12v /24v Barb Fitting Normally Open Or Normally Closed Pressure Switch Could Be Used For Dewalt Porter Cable Air Compressor Rated 105/135/90/120/150/180/160/200psi And Other On Off Values
1. Product name: China factory 12v /24v Barb Fitting normally open or normally closed pressure switch could be used for dewalt porter cable air compressor rated 105/135/90/120/150/180/160/200psi and other on off values .high quality through CE, ROSH certification.
2. Pressure control range: 0-10MPA 1MPA=145PSI=10bar.
3. Pressure value: 105-135psi , 90-120psi, 120-150psi, 160-200psi and so on. According to customer requirements.
4. Interface type: Barb connector, can be equipped with air pipe.
5. Interface material: Galvanized iron.
6. Interface size: 6.35mm diameter
7. Connection mode: insert piece, insert piece can be welded with wire, wire tail can be equipped with connector.
8.Size of inserting piece:6.35mm diameter.
9. Working voltage:12/24/36V.
10. Working current:20/30/50A.

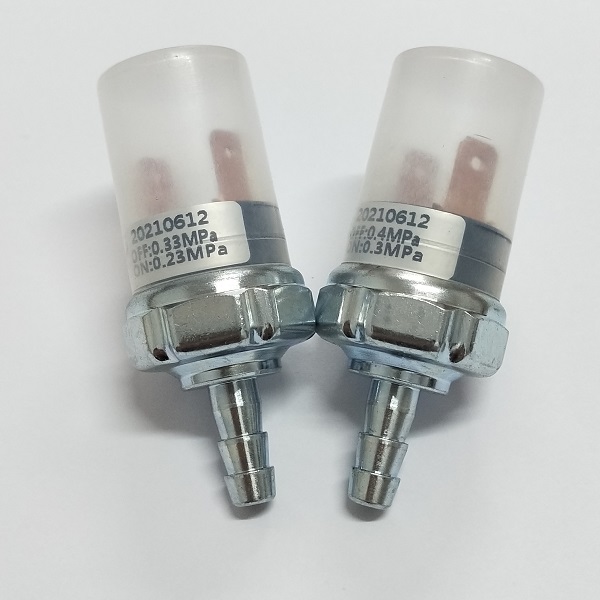

This is a pressure switch with a pagoda-shaped joint, and its joint is in a continuous cone shape.So it can be better connected with water pipes and air pipes.
This pressure switch is mostly used in air compressors, small air pumps, and water pumps、air tank .Air pipe or water pipe can be installed at its interface, In addition, the inserting part can be connected by soldering wires, and the specified terminal connectors can be installed.Of course, if you have high waterproof requirements, you can also add our unique waterproof case, As shown in the figure on the right.
Note: The pressure parameters shown in the picture are for reference only, and all pressure values are customized according to customer requirements.
The pressure switch is a simple pressure control device,When the measured pressure reaches the rated value, the pressure switch can send out an alarm or control signal.The principle is that when the measured pressure exceeds the rated value, the free end of the elastic element is displaced, and the switching element is pushed directly or after comparison to change the on-off state of the switching element to achieve the purpose of controlling the measured pressure.
Every small part of the switch has passed our strict quality control,All products have undergone 5 strict inspections before leaving the factory, including 2 water tests to prevent leakage of the switch, and 3 pressure parameter tests to ensure that all switch pressure values can meet the requirements.
